Roller brushes are essential components in various industrial and cleaning applications. As a roller brush machine supplier, I often encounter customers facing issues with damaged roller brushes on their machines. In this blog, I'll share some practical steps on how to repair a damaged roller brush on a machine, ensuring its optimal performance and longevity.
Understanding the Roller Brush and Its Common Damages
Before we dive into the repair process, it's crucial to understand the structure of a roller brush and the common types of damages it can suffer. A typical roller brush consists of a core, bristles, and a mounting mechanism. The core provides the structure, while the bristles perform the cleaning or surface - treatment function.
Common damages to roller brushes include broken bristles, loose bristles, a damaged core, or wear on the mounting parts. Broken bristles can occur due to excessive pressure, contact with hard objects, or normal wear and tear over time. Loose bristles may result from improper installation or adhesive failure. A damaged core can be caused by impacts or corrosion, and wear on the mounting parts can lead to instability during operation.
Tools and Materials Needed for Repair
To repair a damaged roller brush, you'll need the following tools and materials:
- Bristle replacement material: Depending on the original type of bristles, you may need nylon, polypropylene, or natural fiber bristles.
- Adhesive: A strong adhesive suitable for bonding the bristles to the core.
- Scissors or a utility knife: For trimming the bristles.
- Sandpaper: To smooth the surface of the core if it's damaged.
- Wrenches or screwdrivers: For removing and reinstalling the roller brush from the machine.
Step - by - Step Repair Process
Step 1: Remove the Roller Brush from the Machine
First, ensure that the machine is turned off and unplugged to avoid any safety hazards. Use the appropriate wrenches or screwdrivers to remove the roller brush from its mounting position on the machine. Take note of how the brush is installed, especially the orientation and any special locking mechanisms.
Step 2: Inspect the Damage
Carefully examine the roller brush to identify the extent and type of damage. If there are only a few broken or loose bristles, they can be easily replaced. However, if the core is severely damaged, it may be necessary to replace the entire roller brush. Check for any signs of corrosion or wear on the mounting parts as well.
Step 3: Remove Damaged Bristles
If there are broken or loose bristles, use the scissors or utility knife to carefully cut them off at the base. Make sure to remove all the damaged bristles to prevent them from causing further problems during operation.
Step 4: Prepare the Core
If the core has any rough or damaged areas, use the sandpaper to smooth them out. This will ensure a better surface for the new bristles to adhere to. Clean the core thoroughly to remove any debris or old adhesive.
Step 5: Replace the Bristles
Cut the replacement bristles to the appropriate length. Apply a small amount of adhesive to the area where the new bristles will be inserted. Insert the bristles into the core, making sure they are evenly spaced and firmly in place. Use a tool to press the bristles down gently to ensure good adhesion.
Step 6: Trim the Bristles
Once the adhesive has dried, use the scissors or utility knife to trim the bristles to the desired length. Make sure the bristles are all of the same length for uniform performance.
Step 7: Reinstall the Roller Brush
After the repair is complete, carefully reinstall the roller brush on the machine. Follow the steps in reverse order of removal, ensuring that the brush is properly oriented and securely fastened.
Special Considerations for Different Types of Damages
Broken Core
If the core is broken, it may be difficult to repair it effectively. In most cases, it's recommended to replace the entire roller brush. However, if the break is minor, you can try using a strong epoxy adhesive to bond the broken parts together. Make sure to clamp the parts firmly while the adhesive dries.
Worn Mounting Parts
If the mounting parts are worn, they can be replaced with new ones. Check with the machine manufacturer or a supplier for the correct replacement parts. Before installing the new parts, clean the mounting area on the machine to ensure a proper fit.
Preventive Maintenance to Avoid Future Damages
To reduce the likelihood of roller brush damage, it's important to perform regular preventive maintenance. This includes:
- Regular cleaning: Clean the roller brush after each use to remove dirt, debris, and any corrosive substances.
- Proper storage: Store the roller brush in a dry, clean place to prevent corrosion and damage.
- Inspection: Periodically inspect the roller brush for signs of wear or damage, and address any issues promptly.
Our Roller Brush Machines

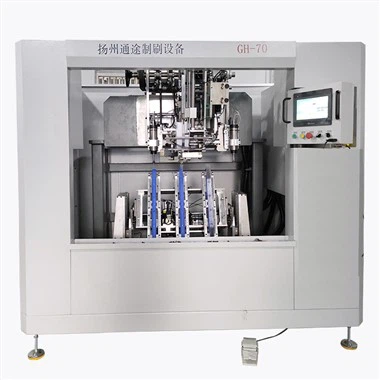

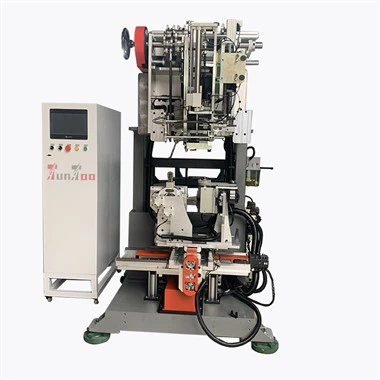

As a roller brush machine supplier, we offer a range of high - quality machines, such as the Three - Axis Gantry Brush Machine with Drilling - 4, Three - Axis Gantry Brush Machine with Drilling - 3, and Three - Axis Gantry Brush Machine with Drilling - 2. These machines are designed to produce high - quality roller brushes efficiently and accurately.
Contact Us for Purchase and Consultation
If you're interested in purchasing a roller brush machine or need further advice on roller brush repair and maintenance, please feel free to contact us. Our team of experts is ready to assist you with your specific needs.
References
- Industrial Brush Manufacturing Handbook.
- Roller Brush Maintenance Guide from leading industry associations.
