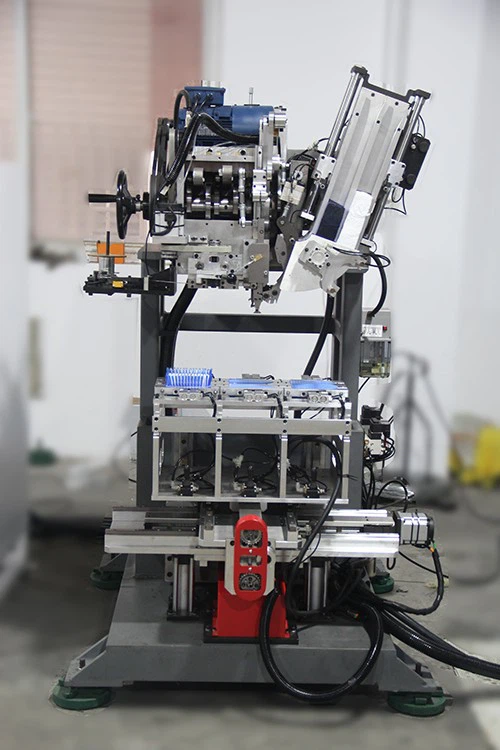

Three- Axis High Speed Brush Machine
This high speed brush machine is more suitable for flat brushes with holes, if used to make ordinary shoe brushes, the clever design of our workbench can increase the number of stations (six stations) to improve the speed and increase the capacity rate of one cycle, and also to achieve a multi-person machine.
Description
Technical Data
|
NAME |
|
|
TYPE |
GB40-03CZ |
|
Filling head |
Anchor-wire（Flat-wire） |
|
Filling tools |
1 |
|
Drills |
2 |
|
Clamping Stations |
3 |
|
Axes |
3 |
|
Speed (tufts/minute) |
520 |
|
HAIRY MOUTH STROKE |
40mm |
|
MAX HEIGHT OF HAIR TIP |
65mm |
|
DISTANCE OF FIXTURES |
180mm |
|
X-axis STROKE |
520mm |
|
Y-axis STROKE |
320mm |
|
Z-axis STROKE |
200mm |
Features
1. The frame of the floor brush making machine use a combination of overall welding,
overall tempering and overall processing, the frame has outstanding rigidity and surface hardness. to ensure the high strength and high precision of the main body and is not easy to deform after long-term use.
2. The operating system programmer is independently created and assembled utilizing Siemens' intelligent PLC control, making them simple to use, comprehend, and learn.
3. The operation mode adopts electronic cam mode, with stable movement and small jitter, which greatly prolongs the service life of guide、lead screw and bearing
4. All wearing components adhere to industry standards and can be interchanged with other products in the same series
5. Joint bearing is imported from DURBAL, Germany, long-term use is not easy to have clearance, low noise, long service life
6. The workbench is made of 6061 T6 high-grade aviation aluminum parts, the aluminum itself is not easy to deformation of high strength, the workbench is lightweight and high speed, small inertia, more stable performance.
7. This house hold floor brush making machine is working in continuous cycle and giving an extraordinary high output of finished products.
8. Fiber stock box for synthetic filament ( 2 colors) as well as natural, metallic and plastic fiber etc.
9. This flat brush machine control can be upgraded from 3 to 4 or 5 axes.
Functions
Suitable for the production of household products: flat hairbrushes, dust brushes, shoe brushes etc. (Mainly flat brush products without angles）
Processing of wooden and plastic handles.
Filament types: can process plastic filaments | wire filament | natural fiber and natural hair
Application
This household floor brush making machine produce quality brushes, which can use for cleaning
Advantages
The ingenious design of the worktable makes this machine more valuable, with an excellent price and increased efficiency.
Tuntoo is committed to offering you the most affordable high-speed equipment technologies and solutions, as well as unwavering pre-sales and after-sales services. We warmly welcome new and current clients to discuss cooperation:
What we offer:
1) Better design
2) Advanced technology
3) Strict quality control
4) Highly competitive prices
5) Reliable operation
6) Smooth communication
7) Good after-sales service & support
Professional services with warmth
Pre-sale: To provide professional technical advice, provide detailed information, to provide a reasonable quotation, to provide inspection reception.
In-sale: In the process of product manufacture, invite the customer's technical personnel to our company to look over the inspection of each working procedure in the manufacturing process, and provide the customer's technical personnel with the inspection standard and the inspection result of the product.
After-sales: Solemnly promise to the respected users: strictly implement the established after-sales service system; 24 hours a day to provide technical support for users, hotline dedicated to serve you, in the shortest time to the scene, Implement service tracking for customers who purchase our products，Free on-site debugging service and free installation guidance service for the products sold，Product quality problems, one year free warranty, life-long maintenance, there is a contract agreement according to the contract agreement.
Packing process
1.Our equipment is vacuum packed with the wooden case to protect it from rust and moisture, to prevent damage to the machine from the long sea transport cycle and the corrosive nature of the sea water.
2.Our wooden case is after fumigation treatment. Needn't timber inspection, saving shipping time.
3. All the spare parts of the machine were covered by some soft materials mainly using pearl wool and bubble wrap.
4. The exterior of our crates will be equipped with a packing list and a clear company logo to avoid loss of goods in confusing ports, the interior will have a delivery note and all accessories will be photographed and kept for later verification.
FAQ
1. Q: Are you a factory or a trader?
A: We are a factory and have an international trade department.
2. Q: Can you teach us how to use the machine?
A: Yes, of course.
3. Q: How can we know if our brush sample can be made by your machine?
A: You can send the sample picture, our engineer will provide the process, then we can use our machine to type the sample brush according to your sample.
4. Q: What is the average lead time?
A: For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment (For standard machine the fastest delivery time is 7 days).
The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
5. Q: Can you supply the relevant documentation?
A: Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
6. Q: What is the product warranty?
A: We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone’s satisfaction.
7. Q: What about your service?
A: * 24 hours online service.
* Provide the VIDEO with Install and debug the equipment.
* Provide technical exchanging.
8. Q: Do you guarantee safe and secure delivery of products?
A: Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
9. Q: How about the shipping fees?
A: The shipping cost depends on the way you choose to get the goods. Express is normally the quickest but also most expensive way. By sea freight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.
