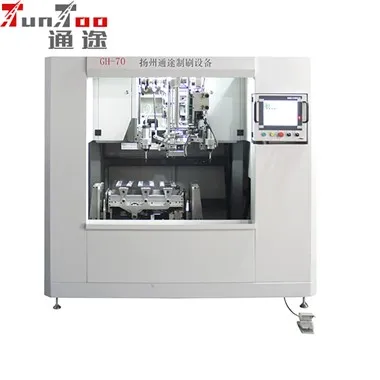

Five- Axis Tufting Brush Machine with Drilling
This brush drilling machine has 5axes, and can be used to make the brush in any shape you want. The only difference with GH70-05SCZ is that there is no cover, some manufacturers choose the machine without a cover in order to achieve multiple machines for one person, so that the observation area increases to facilitate observation and operation
Description
Technical Data
|
NAME |
|
|
TYPE |
GH70-05SZ |
|
Filling head |
Staple-wire or flat-wire |
|
Filling tools |
1 |
|
Drills |
2 |
|
Clamping Stations |
3 |
|
Axes |
5 |
|
Speed (tufts/minute) |
500 |
|
HAIRY MOUTH STROKE |
70mm |
|
MAX HEIGHT OF HAIR TIP |
120mm |
|
DISTANCE OF FIXTURES |
180mm |
|
X-axis STROKE |
550mm |
|
Y-axis STROKE |
550mm |
|
Z-axis STROKE |
200mm |
|
A-axis STROKE |
180° |
|
B-axis STROKE |
170° |
Features
1.The frame of the 5 axis dust cleaning brush machine use overall welding, overall tempering, and overall processing to make the frame in perfect precision. It is more durable and won't easily be out of shape.
2.The machine has two drilling units and one filling unit that run through the operation without stopping to replace items, resulting in a higher production.
3.The drilling section uses a ball guide rail structure, which has a ten-fold longer life than a standard copper sleeve structure.
4.The operating system can be edited by computer. In addition, the self-developed Siemens system makes product programming easier.
5.The operation mode adopts electronic cam mode, with stable movement and small jitter, which greatly increase the service life of Guide rail、Lead screw and Bearing.
6.All wearing parts adopt the industry standard and can be interchanged with the same series of product, which reduce production costs.
7.The workbench is made of 6061 T6 high-grade aviation aluminum parts, the aluminum itself is not easy to deformation of high strength, the workbench is lightweight and high speed, small inertia, more stable performance.
8.Axis A and B may be rotated 180 degrees, which is ideal for most goods.
9.Multiple sets of worktables can be added to the machine to meet a variety of needs.
Functions
Products
Suitable for the production of household, technical and industrial products such as:
→ cylinder brushes, domestic brushes bristle, hairbrushes, roller brushes, belt brush, hydraulic broomer brush, dust brushes, rotary cylinder brush, floor scrubbing brushes, disc brushes etc.
→ handle types: wooden and plastic handles
→ filament types: can process plastic filament | wire filament | natural fiber and natural hair | animal hair
Advantages
Brush making machine can produce all kinds of brushes by different platens and heads.
Tuntoo is committed to offering you the most affordable high-speed equipment technologies and solutions, as well as unwavering pre-sales and after-sales services. We warmly welcome new and current clients to discuss cooperation:
What we offer:
1) Better design
2) Advanced technology
3) Strict quality control
4) Highly competitive prices
5) Reliable operation
6) Smooth communication
7) Good after-sales service & support
Professional services with warmth
Pre-sale: To provide professional technical advice, provide detailed information, to provide a reasonable quotation, to provide inspection reception.
In-sale: In the process of product manufacture, invite the customer's technical personnel to our company to look over the inspection of each working procedure in the manufacturing process, and provide the customer's technical personnel with the inspection standard and the inspection result of the product.
After-sales: Solemnly promise to the respected users: strictly implement the established after-sales service system; 24 hours a day to provide technical support for users, hotline dedicated to serve you, in the shortest time to the scene, Implement service tracking for customers who purchase our products，Free on-site debugging service and free installation guidance service for the products sold，Product quality problems, one year free warranty, life-long maintenance, there is a contract agreement according to the contract agreement.
Packing process
1.Our equipment is vacuum packed with the wooden case to protect it from rust and moisture, to prevent damage to the machine from the long sea transport cycle and the corrosive nature of the sea water.
2.Our wooden case is after fumigation treatment. Needn't timber inspection, saving shipping time.
3. All the spare parts of the machine were covered by some soft materials mainly using pearl wool and bubble wrap.
4. The exterior of our crates will be equipped with a packing list and a clear company logo to avoid loss of goods in confusing ports, the interior will have a delivery note and all accessories will be photographed and kept for later verification.
FAQ
1. Q: Are you a factory or a trader?
A: We are a factory and have an international trade department.
2. Q: Can you teach us how to use the machine?
A: Yes, of course.
3. Q: How can we know if our brush sample can be made by your machine?
A: You can send the sample picture, our engineer will provide the process, then we can use our machine to type the sample brush according to your sample.
4. Q: What is the average lead time?
A: For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment (For standard machine the fastest delivery time is 7 days).
The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
5. Q: Can you supply the relevant documentation?
A: Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
6. Q: What is the product warranty?
A: We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone’s satisfaction.
7. Q: What about your service?
A: * 24 hours online service.
* Provide the VIDEO with Install and debug the equipment.
* Provide technical exchanging.
8. Q: Do you guarantee safe and secure delivery of products?
A: Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
9. Q: How about the shipping fees?
A: The shipping cost depends on the way you choose to get the goods. Express is normally the quickest but also most expensive way. By sea freight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.
