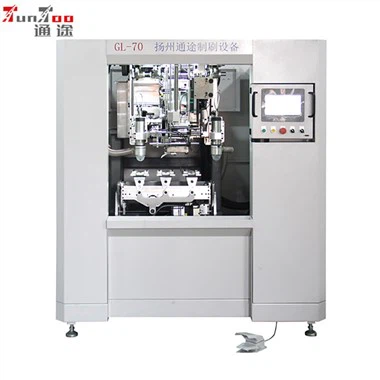

Four- Axis Tufting Brush Machine with Cover
This cleaning brush making machine with drilling is designed for high-volume disc and cylinder brush production, with continuous operations throughout its three stations.
Description
Technical Data
|
NAME |
|
|
TYPE |
GL70-04SCZ |
|
Filling head |
Staple-wire |
|
Filling tools |
1 |
|
Drills |
2 |
|
Clamping Stations |
3 |
|
Axes |
4 |
|
Speed (tufts/minute) |
520 |
|
HAIRY MOUTH STROKE |
70mm |
|
MAX HEIGHT OF HAIR TIP |
120mm |
|
DISTANCE OF FIXTURES |
180mm |
|
X-axis STROKE |
520mm |
|
Y-axis STROKE |
320mm |
|
Z-axis STROKE |
160mm |
|
A-axis STROKE |
180° |
Features
1．The frame of the wooden brush making machine adopts the manufacturing process of overall welding, overall tempering and overall processing to ensure the high strength and high precision of the main body and is not easy to deform after long-term use. Stronger construction means more stability and less vibration.
2．It has a double clamping system for drilling and filling at the same time. Furthermore, the machine can operate with a single brush holder, allowing it to produce larger products while minimizing change-over time.
3．The operating system programs is independently developed and compiled, using Siemens control intelligent PLC, easy to operate, learn, and understand, complex product preparation more simplistic.
4．The operation mode adopts electronic cam mode, with stable movement and small jitter, which greatly increase the service life of Guide rail、Lead screw and Bearing
5．Joint bearing is imported from DURBAL, Germany, long-term use is not easy to have clearance, low noise, long service life
6．The worktable is designed to be lightweight, flexible in movement and small in inertia;
7．Axis A can be rotated 180 degrees, and this brush drilling and tufting machine control can be upgraded from 4 to 5 axes.
8．Every wearable component complies with industry standards and can be used with the same line of products.
Functions
Suitable for the production of household products such as:
→ handle brushes, bath brushes, broomer brush, roller brush, dish washer brushes, floor cleaning brush, Tampico fiber brush etc.
processing of wooden and plastic handles
→ filament types: can process plastic filament | wire filament | natural fiber and natural hair
Advantages
The brush filling machine advantages includes accuracy and efficiency, low cost, short production cycle, wide range of products, greater flexibility.
Tuntoo is committed to offering you the most affordable high-speed equipment technologies and solutions, as well as unwavering pre-sales and after-sales services. We warmly welcome new and current clients to discuss cooperation:
What we offer:
1) Better design
2) Advanced technology
3) Strict quality control
4) Highly competitive prices
5) Reliable operation
6) Smooth communication
7) Good after-sales service & support
Professional services with warmth
Pre-sale: To provide professional technical advice, provide detailed information, to provide a reasonable quotation, to provide inspection reception.
In-sale: In the process of product manufacture, invite the customer's technical personnel to our company to look over the inspection of each working procedure in the manufacturing process, and provide the customer's technical personnel with the inspection standard and the inspection result of the product.
After-sales: Solemnly promise to the respected users: strictly implement the established after-sales service system; 24 hours a day to provide technical support for users, hotline dedicated to serve you, in the shortest time to the scene, Implement service tracking for customers who purchase our products，Free on-site debugging service and free installation guidance service for the products sold，Product quality problems, one year free warranty, life-long maintenance, there is a contract agreement according to the contract agreement.
Packing process
1.Our equipment is vacuum packed with the wooden case to protect it from rust and moisture, to prevent damage to the machine from the long sea transport cycle and the corrosive nature of the sea water.
2.Our wooden case is after fumigation treatment. Needn't timber inspection, saving shipping time.
3. All the spare parts of the machine were covered by some soft materials mainly using pearl wool and bubble wrap.
4. The exterior of our crates will be equipped with a packing list and a clear company logo to avoid loss of goods in confusing ports, the interior will have a delivery note and all accessories will be photographed and kept for later verification.
FAQ
1. Q: Are you a factory or a trader?
A: We are a factory and have an international trade department.
2. Q: Can you teach us how to use the machine?
A: Yes, of course.
3. Q: How can we know if our brush sample can be made by your machine?
A: You can send the sample picture, our engineer will provide the process, then we can use our machine to type the sample brush according to your sample.
4. Q: What is the average lead time?
A: For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment (For standard machine the fastest delivery time is 7 days).
The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
5. Q: Can you supply the relevant documentation?
A: Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
6. Q: What is the product warranty?
A: We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone’s satisfaction.
7. Q: What about your service?
A: * 24 hours online service.
* Provide the VIDEO with Install and debug the equipment.
* Provide technical exchanging.
8. Q: Do you guarantee safe and secure delivery of products?
A: Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
9. Q: How about the shipping fees?
A: The shipping cost depends on the way you choose to get the goods. Express is normally the quickest but also most expensive way. By sea freight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.
